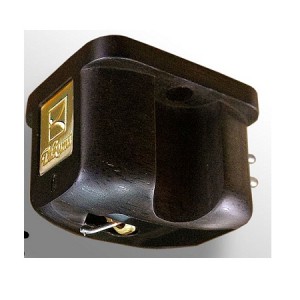

Miyajima Takumi STEREO

There were two big problems in a conventional phono- cartridge. The conventional phono- cartridge installs a square iron core to a cantilever and winds up a coil to the iron core. And it installs a wire in the center of the iron core. And it is fixed through a rubber damper in York. Therefore the movement point is located in a rubber damper in the outside of the coil. There is the cross-shaped thing to the iron core, too. Those methods become the electricity generating system of the magnetic induction type that they used a core of the iron for so that movement point is separated from a coil. Therefore the piece of iron put in a magnetic field is strongly attracted to a magnet, and it is not thought that it is possible for free, correct movement. In addition, the movement point is vague because a wire is a bending part. The vague fulcrum cannot convey the movement of the tip to a coil precisely. The cross ring method broke off the big fault of the conventional phono- cartridge. The cross ring method synchronizes the center point of the coil of right and left and enables correct reproduction by assuming the center point a clear movement point. The sound of Takumi is clear and soft. Takumi adapts to arms various than Waza. Takumi pursued usability. And we reduced production cost of Takumi to reduce a price. The structure is a cross ring method in the same way.

Maker  　Miyajima-Laboratory

Product name: 　Stereo cartridge -Takumi-

Impedance:       　About 16 ohms (About 0.2mV output)

Frequency range (-3dB):             20 Hz to 25 kHz

Tracking force:  　2.3 g

Stylus Shape:    　Elliptic (diamond needle)

Compliance (10Hz):        　around 9×10-6cm/dyne

Appropriate temperature: 20-30 Celsius (most suitable 25 C)

68-86 Fahrenheit (most suitable 77 F)

Weight:               　About 8.9g

Body:    　African Blackwood (second quality)

A BRAND-NEW item
